Five style types of smart socket designs

Under the wave of smart home, the intelligent trend of home products is increasingly prominent, and more and more smart home products are widely used in people's family life. The smart socket is an important part of the home. It can be combined with automatic control programs, calculator network programs and network communication technology to realize the timing switch, power-off protection, electricity metering, and remote control of various electrical equipment in the household. The intelligent monitoring and management can effectively save household electricity and ensure the safety of electricity consumption. The following briefly introduces five styles of smart socket designs.

1. Design of leakage cut-off smart socket

This type of smart socket mainly has the functions of leakage current to cut off the power supply, overload power failure, etc. As long as the current greater than a certain limit is not combined with the zero line to form a loop, it will be judged as leakage and the power will be cut off immediately. Similarly, when the power supply voltage is too high, the current used is overloaded and other abnormal conditions, it will automatically cut off the power supply to ensure the safety of electronic equipment.

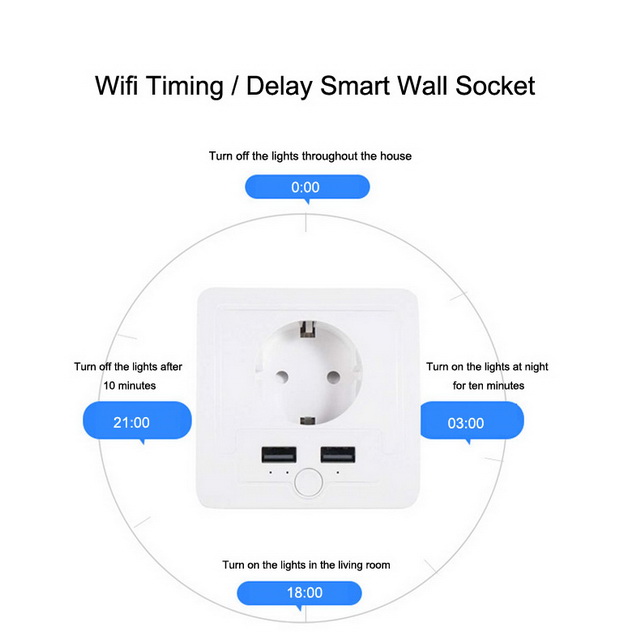

2. Design of time-setting smart socket

The most convenient place for this type of smart socket is that it can meet people's time-sharing and intermittent needs for power supply. For example, when the unit price of electricity at night is cheaper than that during the day, the power supply of equipment such as water boilers and washing machines can be automatically supplied, which can reduce expenses for users. With the function of time setting, it can edit and control all the sockets of the socket cover separately, and control the power supply of different sockets to be turned on and off according to the user's requirements.

3. Mainstream control type smart socket design

Smart sockets in this category usually have a single main circuit and the rest are secondary circuits. For example, when the main computer has no power, it will determine that there is no current passing through the main circuit, and then turn off the power supply of an entire socket. Some machines such as keyboards, monitors, mice, etc. are out of power, which can not only reduce the power consumption during standby, but also ensure the security of using electricity.

4. Remote control smart socket design

In this type of smart socket, each channel can use a wireless remote control to remotely control on and off, so it will require at least one remote control. The method of information transmission is usually infrared, voice control or small wireless.

5. Design of counting smart socket

The function of such a smart socket is equivalent to a separate electric meter, which can feed back data such as electricity, power, and voltage of the electronic facilities in the socket. Usually there is an LCD screen and some buttons, which can transmit information to a computer or mobile phone, and form a report through the supporting software, which lists the power consumption of the machine in detail.

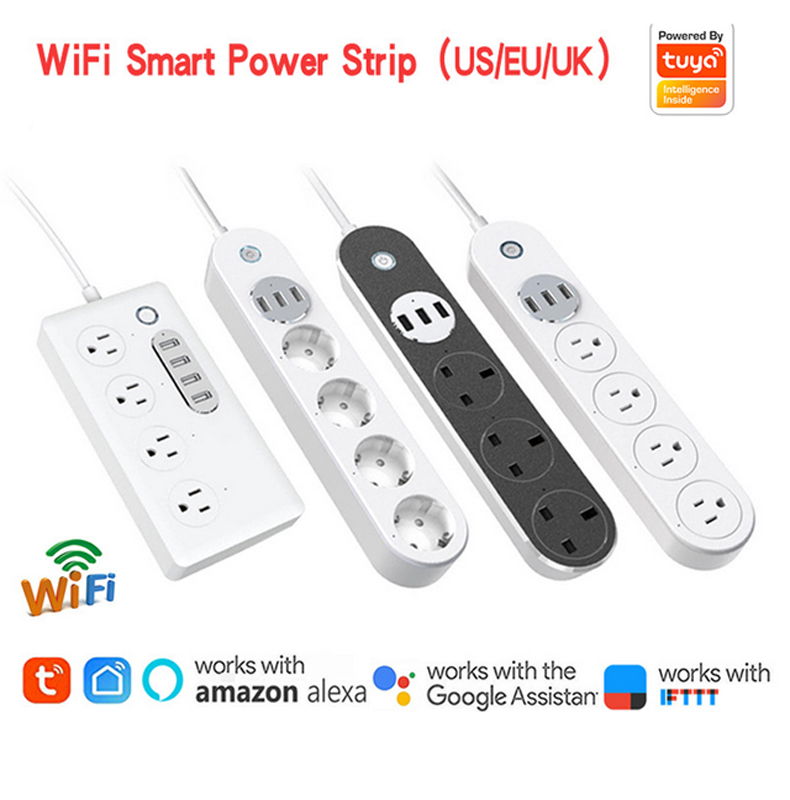

Of course, most of the current popular smart sockets in the market integrate a variety of functions, including timer switch, remote control, smart counting and other functions. The product design is more inclined to home style, emphasizing the image of electrical appliances with a sense of technology, which is in line with modern home furnishing. It pays more attention to the humanization and safety of the design, and improves the appearance and user experience of the product with new innovative inspiration, which is convenient for the daily use of the product.
