[ ALIVE HOME ] How Tuya smart air conditioner is realized?

▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽▼▽

Today we mainly talk about how to realize the intelligent control of the air conditioner in the Tuya Smart Platform. There are three common types of air conditioners: infrared-controlled wall-mounted or vertical air conditioners, water machine central air conditioners, and fluorine machine central air conditioners.

 ▼▽▼▽▼▽▼▽

Infrared-controlled wall-mounted or vertical air conditioners are controlled by infrared remote controllers, so we use Tuya smart infrared transponders or air conditioner companions for control.

  ▼▽▼▽▼▽▼▽

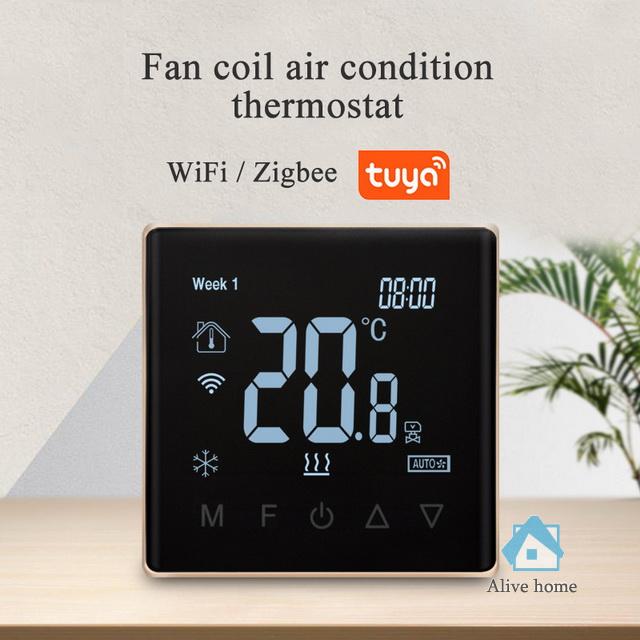

The central air conditioner of the water machine is controlled through the panel. This type of air conditioner panel generally has seven wires: zero live wire, control motor gear (high, medium, low), and valve close. There are similar types of Tuya smart control panels on the market, and the front panel can be directly replaced with Tuya Smart Control Panel is all you need.

  ▼▽▼▽▼▽▼▽

Infrared air conditioners and water machine central air conditioners are easy to control intelligently. The products are relatively simple and the cost is very low. For example, infrared transponders and air conditioner companions cost tens of dollars, and more expensive water machine intelligent control panels cost only a few hundred dollars. Installation and commissioning This one is easy and hassle-free.

 ▼▽▼▽▼▽▼▽

The central air conditioner of the fluorine machine also has its own panel control. This type of panel is mainly a signal line for internal communication control, which is very different from the water machine panel. There is no corresponding Tuya smart panel replacement, and it is all done through the air conditioner gateway wire controller or centralized controller.

 ▼▽▼▽▼▽▼▽

The cost of the central air-conditioning gateway of the fluorine machine is very high. One-to-one wire controllers (one wire controller corresponds to one internal unit, one-to-many (one external unit corresponds to many internal units) or many-to-many (many external units to many internal units) machine); installation and debugging are more troublesome. First of all, the wiring of the air-conditioning gateway and the central air-conditioning, the wiring of different brands is different, and you have to carefully explore the information and equipment. As long as the wiring is correct, it is relatively simple to debug the distribution network Therefore, if you want to intelligently control the central air conditioner of the fluorine machine, you must be familiar with the on-site operation. But at present, the experience in the intelligent application of the fluorine machine is generally lacking, mainly because of the high cost and few people do it. Push it to the air conditioner gateway manufacturer.
